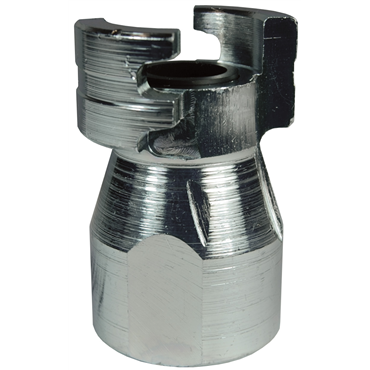

Dixon Valve & Coupling P4F3 Dual Lock Quick-Acting Coupling 3/8

Product Description

This is the Dixon Valve & Coupling P4F3 Dual Lock Quick-Acting Coupling. It is built for efficient connection in various air fitting applications.

• Spring-loaded interlocking engagement
• Full opening allows full-line pressure
• Compatible with National A type and Perfecting P type couplings

Product Highlights

This coupling provides a fast and secure connection, ideal for HVAC and plumbing tasks. It interchanges with popular coupling types for flexibility in use.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 101940243

Technical Specifications

• Operating Pressure [Max]: 300.0 psi
• Female Thread: 3/8 in NPT
• Series: Thor Interchange
• Connection Type: Female Pipe Thread
• Body Material: Trivalent Chrome Plated Steel
• Burst Pressure [Min]: 4,800 psi
• Body Size: 1/2 in
• Connection Size: 3/8
• Component: Plug
• Flow (CFM): 250 ft3/min
• Pressure Rating: 300 psi
• Weight: 0.28 LB
