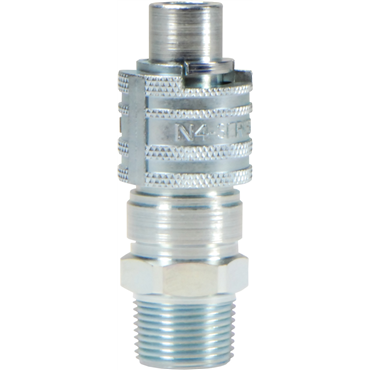

Dixon Valve & Coupling N4M6 Dix-Lock Quick-Acting Coupling

Product Description

The Dixon Valve & Coupling N4M6 is a Dix-Lock Quick-Acting Coupling designed for efficient air connections. This coupling features dual guide sleeve tabs that ensure smooth collar action during connection and disconnection. The 'Push-Twist and Click' design provides a secure locking mechanism when connected. The pneumatically energized seal guarantees an airtight connection across all working pressures.

• 3/4 Male NPT design
• Plated Steel construction for durability
• Pressure rating of 500 psi

Product Highlights

This coupling is suitable for a variety of pneumatic applications and is designed to prevent accidental disconnection during operation. The optional safety-lock ring adds an extra layer of security.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part #: 101937570

Technical Specifications

• Body Size: 1/2 in
• Component: Plug
• Pressure Rating: 500 psi
• Connection Type: Male Head x Male NPT End
• Body Material: Plated Steel
• Operating Pressure [Max]: 300.0 psi
• Flow (CFM): 250 ft3/min
• Burst Pressure [Min]: 3,000 psi
• Male Thread: 3/4 in NPT
• Series: Bowes Interchange
• Connection Size: 3/4
• Weight: 0.63 LB
