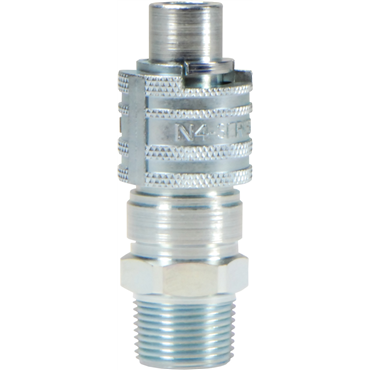

Dixon Valve & Coupling N4M4 Dix-Lock Quick-Acting Coupling 500 psi

Product Description

The Dixon Valve & Coupling N4M4 is a quick-acting coupling designed to ensure efficient connection and disconnection in air fitting applications. This coupling features a 1/2 inch male NPT connection, providing versatility for various setups.

• Dual guide sleeve tabs for smooth operation
• Pneumatic seal for airtight performance
• Optional safety-lock ring to prevent disconnections

Product Highlights

Ideal for air fittings, this coupling guarantees effective performance under high pressure conditions.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part #: 101936026

Technical Specifications

• Connection Type: Male Head x Male NPT End
• Operating Pressure [Max]: 300 psi
• Connection Size: 1/2 inch
• Body Size: 1/2 inch
• Flow (CFM): 250 ft³/min at 0.4 Bar
• Series: Bowes Interchange
• Component: Plug
• Pressure Rating: 500 psi
• Body Material: Plated Steel
• Male Thread: 1/2 inch NPT
• Burst Pressure [Min]: 3,000 psi
• Weight: 0.63 lb
