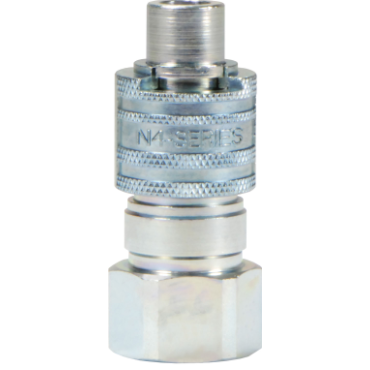

Dixon Valve & Coupling N4F6 Dix-Lock Quick-Acting Coupling

Product Description

The Dixon Valve & Coupling N4F6 is a quick-acting coupling designed for efficient fluid transfer. It features a dual guide sleeve that ensures smooth operation during connection and disconnection. This coupling delivers a reliable locking mechanism through its 'Push-Twist and Click' action. It is ideal for applications needing a secure connection with minimal downtime.

• Dual guide sleeve for smooth operation
• Positive locking mechanism
• Airtight seal at all working pressures

Product Highlights

The N4F6 offers a strong, airtight seal and is equipped with a safety-lock ring to prevent accidental disconnections.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part #: 101935452

Technical Specifications

• Connection Type: Male Head x Female NPT End
• Body Size: 1/2 in
• Body Material: Plated Steel
• Female Thread: 3/4 in NPT
• Pressure Rating: 500 psi
• Burst Pressure [Min]: 3,000 psi
• Operating Pressure [Max]: 300.0 psi
• Flow (CFM) at 0.4 Bar: 250 ft3/min
