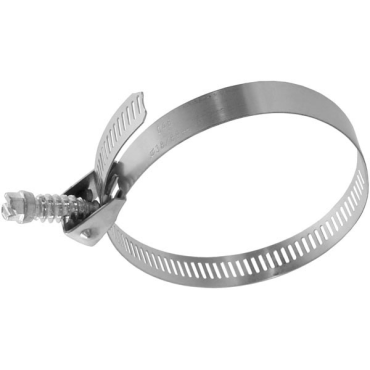

Dixon Valve & Coupling LS56 Quick Release Worm Gear Clamp

Product Description

The Dixon Valve & Coupling LS56 is a quick-release worm gear clamp designed for dependable fastening in various applications. This clamp supports a hose outside diameter range from one to sixteen inches, making it ideal for different sizes. It features an easy-to-use slotted hex head screw for straightforward adjustments.

• Hose O.D. range of one to sixteen inches
• Made from durable 301 stainless steel
• Includes a 5/16 inch slotted hex head screw

Product Highlights

This clamp is suitable for both professional and DIY projects, ensuring a robust and secure connection for hoses and tubing.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part #: 101895345

Technical Specifications

• Band Width: 0.5 inches
• Torque: 30 in lb
• Hose O.D. Range: 1 to 16 inches
• Band Material: 301 Stainless Steel
• Housing Material: Stainless 300 Series
• Screw Material: Hardened Carbon Steel
• Bolt/Screw Type: Slotted Hex Head
• Weight: 0.07 pounds
