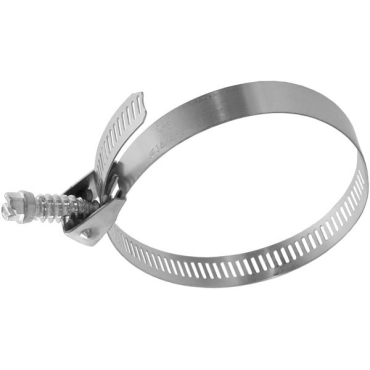

Dixon Valve & Coupling LS188 LS Series Quick Release Clamps

Product Description

The Dixon Valve & Coupling LS188 is part of the LS Series Quick Release Clamps. It is made from 301 stainless steel and designed to provide secure fastening for hoses with an outer diameter ranging from two and one-sixteenth inches to twelve and five-sixteenth inches.

• Max Torque: 30 in lb
• Quick Release Feature
• Worm Drive Buckle with a Grooved Band

Product Highlights

This clamp is effective for HVAC, plumbing, and pooling applications where quick access is necessary. Its stainless steel construction ensures durability and resistance to corrosion.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 101879392

Technical Specifications

• Weight: 0.13 LB
• Hose O.D. Range: 2 1/16 to 12 5/16
• Band Width: 0.5 in
• Locking Type: Worm Drive Buckle-Grooved Band w/Quick Release
• Material: 301 Stainless Steel
• Housing Material: Stainless 300 Series
• Torque [Max]: 30 in lb
• Screw Material: Hardened Carbon Steel
• Bolt/Screw Material: Carbon Steel
