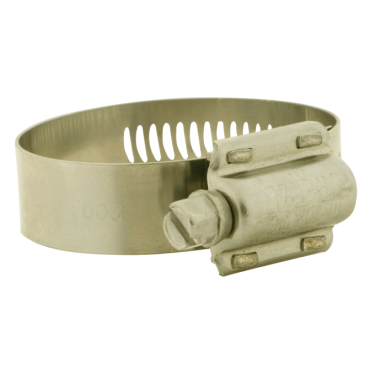

Dixon Valve & Coupling HTM500 | HTM Hi Torque Worm Gear Clamp

Product Description

Dixon Valve & Coupling HTM500 is a reliable worm gear clamp designed for secure fastening in various applications. This clamp features a hose outer diameter range from four sixteen sixty-fourths to five eight sixty-fourths inches. It includes a five-eighths inch band width and is constructed from 300 Series half hard stainless steel for durability.

• Withstands over three times the SAE torque requirements.
• Eight screw threads engaged simultaneously.
• Incredible sealing pressure of over ninety inch-pounds.

Product Highlights

HTM500 worm gear clamp combines strength and efficiency for high-performance use. It offers vibration resistance, making it suitable for demanding environments.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part #: 101893825

Technical Specifications

• Type: HTM HI Torque
• Torque: 150 in lb
• Weight: 0.135 lb
• Band Width: 0.625 in
• Screw Material: Stainless 410 Series
• Band Material: 300 Series Half Hard Stainless Steel
• Hose O.D. Range: 4 16/64 to 5 8/64
• Housing Material: Stainless Steel
• Bolt/Screw Material: Stainless Steel 410
