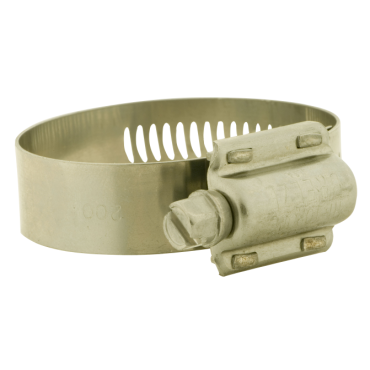

Dixon Valve & Coupling HTM250 HTM Hi Torque Worm Gear Clamp

Product Description

The Dixon Valve & Coupling HTM250 is a reliable HTM Hi Torque Worm Gear Clamp designed for a hose outer diameter range of one and forty-eight sixty-fourths to two and forty sixty-fourths inches. It withstands three times the standard torque requirements for worm-driven clamps. This clamp features eight screw threads engaged in the band for increased torque drive, sealing pressure, and vibration resistance.

• Hose O.D. Range: 1 48/64 to 2 40/64 inches
• Band Width: 0.625 inches
• Torque: 150 in lb

Product Highlights

The HTM250 clamp ensures secure fastening and longevity in various applications.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part #: 101916777

Technical Specifications

• Type: HTM HI Torque
• Weight: 0.1 LB
• Band Material: 300 Series Half Hard Stainless Steel
• Screw Material: Stainless 410 Series
• Housing Material: Stainless Steel
• Bolt/Screw Material: Stainless Steel 410
• Torque: 150 in lb
