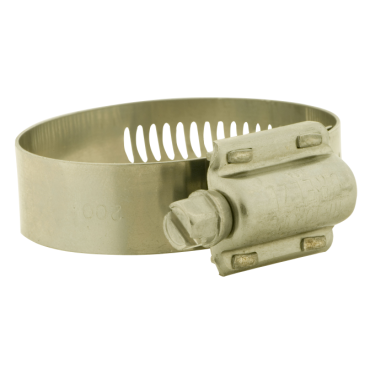

Dixon Valve & Coupling HTM200 HTM Hi Torque Worm Gear Clamp

Product Description

The Dixon Valve & Coupling HTM200 is a high-performance worm gear clamp designed for secure and reliable fastening in various applications. This clamp meets and exceeds the torque standards set by the Society of Automotive Engineers, ensuring it withstands intense sealing pressures and vibrations.

• Hose outer diameter range from one inch sixteen sixty-fourths to two inches eight sixty-fourths
• Built with 300 Series half hard stainless steel for durability
• Torque capacity rated at 150 inch-pounds

Product Highlights

This clamp is ideal for use in automotive, industrial, and plumbing applications where a strong and durable fastening solution is required.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part #: 101894125

Technical Specifications

• Type: HTM Hi Torque
• Hose O.D. Range: 1 16/64 to 2 8/64
• Band Width: 0.625 in
• Torque: 150 in lb
• Band Material: 300 Series Half Hard Stainless Steel
• Screw Material: Stainless 410 Series
• Housing Material: Stainless Steel
• Bolt/Screw Material: Stainless Steel 410
• Weight: 0.09 LB
