Dixon Valve & Coupling GLS455 Liquid Pressure Gauge 0-5000 PSI

Product Description

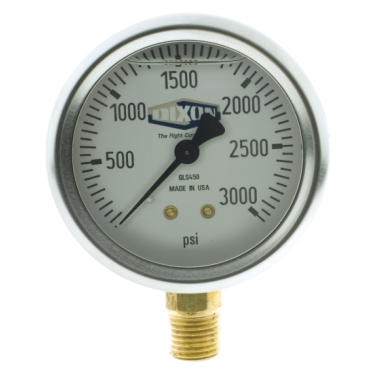

The Dixon Valve & Coupling GLS455 is a liquid pressure gauge designed for reliable service in rugged environments. It features a lower mount configuration and a face diameter of two and a half inches. The gauge is constructed with a stainless steel case to ensure durability and resistance to corrosion.

• Pressure range from 0 to 5,000 PSI
• PowerFlex movement to withstand shock and vibration
• 1/4 inch NPT male connection

Product Highlights

This gauge is suitable for various applications, including pumps, hydraulic systems, and machine tools.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: GLS455

Technical Specifications

• Pressure Range [Max]: 5000 PSI
• Pressure Range [Min]: 0 PSI
• Gauge Function: Pressure Gauge
• Gauge Type: Liquid
• Case Material: Stainless Steel
• Face Diameter: 2 1/2 inches
• NPT Male: 1/4 inch
• Temperature Range [Min]: -40 °F
• Temperature Range [Max]: 150 °F
• Weight: 0.52 LB
