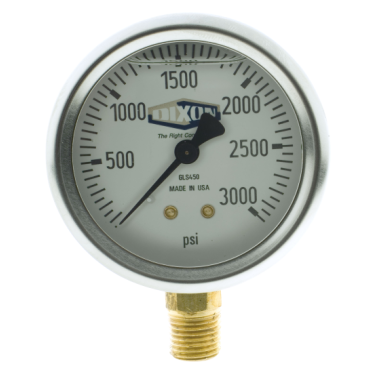

Dixon Valve & Coupling GLS450 Liquid Pressure Gauge 0 to 3,000 PSI

Product Description

The Dixon Valve & Coupling GLS450 is a liquid pressure gauge designed for a range of applications. It features a stainless steel case and a lower mount configuration. The gauge has a face diameter of two and a half inches and offers a pressure range from zero to three thousand PSI.

• Stainless Steel Case
• PowerFlex movement reduces vibration effects
• Lower Mount Design

Product Highlights

This gauge is suitable for both hydraulic and pneumatic systems, as well as various installations where a robust, non-corrosive gauge is needed.

Product Information

Standard Information

• Gauge Type: Liquid
• Gauge Function: Pressure Gauge

Technical Specifications

• Face Diameter: 2 1/2 inches
• Case Material: Stainless Steel
• Gauge Pressure Range: 0 to 3,000 psi
• Pressure Range [Min]: 0 PSI
• Pressure Range [Max]: 3000 PSI
• NPT Male: 1/4 inches
• Mounting Style: Lower Mount
• Temperature Range [Min]: -40 °F
• Temperature Range [Max]: 150 °F
• Weight: 0.52 LB
