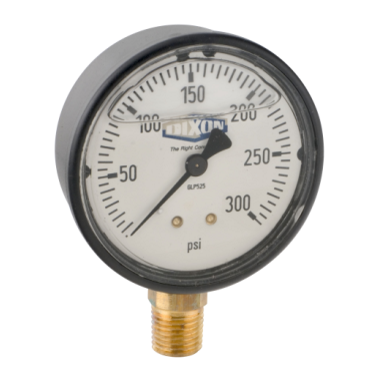

Dixon Valve & Coupling GLP525 | Liquid Pressure Gauge 0-300 PSI

Product Description

The Dixon Valve & Coupling GLP525 is a liquid pressure gauge designed for multiple applications. This gauge features a lower mount design and has a face diameter of two and a half inches. The casing is made from ABS plastic, ensuring durability in various environments. It provides accurate readings with a pressure range from zero to three hundred PSI.

• Lower Mount
• Two and a Half Inch Face Diameter
• Applicable up to 300 PSI

Product Highlights

This pressure gauge is a reliable component for monitoring liquid pressures in pumps, pneumatic systems, and other machinery.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: GLP525

Technical Specifications

• Gauge Type: Liquid
• Face Diameter: Two and a Half Inches
• Material: ABS Plastic
• Case Material: ABS Plastic
• Temperature Range [Max]: 150 °F
• NPT Male: One Fourth Inch
• Mounting Style: Lower Mount
• Pressure Range [Max]: 300 PSI
• Gauge Pressure Range: 0 to 300 PSI
• Gauge Function: Pressure Gauge
• Pressure Range [Min]: 0 PSI
• Temperature Range [Min]: 20 °F
• Weight: 360.0 LB
