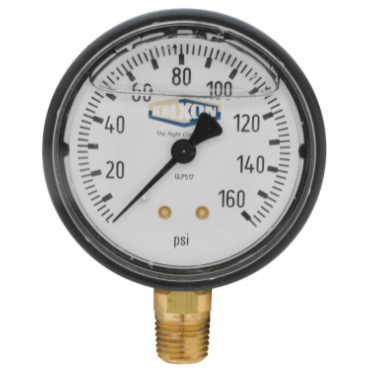

Dixon Valve & Coupling GLP517 Liquid Pressure Gauge 0-160 PSI

Product Description

The Dixon Valve & Coupling GLP517 is a liquid pressure gauge designed for various applications. This gauge features a pressure range of 0 to 160 PSI and has a face diameter of two and a half inches. Its ABS plastic case provides durability and holds up well in rugged environments.

• Lower mount design
• Pressure range from 0 to 160 PSI
• Temperature range from twenty to one hundred fifty degrees Fahrenheit

Product Highlights

The GLP517 is ideal for use in pumps, hydraulic and pneumatic systems, compressors, and machine tools. It ensures accurate readings and non-corrosive movement for long-lasting performance.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 101917726

Technical Specifications

• Gauge Function: Pressure Gauge
• NPT Male: 1/4 inch
• Pressure Range [Max]: 160 PSI
• Temperature Range [Max]: 150 °F
• Gauge Type: Liquid
• Face Diameter: 2 1/2 inches
• Gauge Pressure Range: 0 to 160 PSI
• Case Material: ABS Plastic
• Mounting Style: Lower Mount
• Temperature Range [Min]: 20 °F
• Pressure Range [Min]: 0 PSI
• Weight: 4.228 lbs
