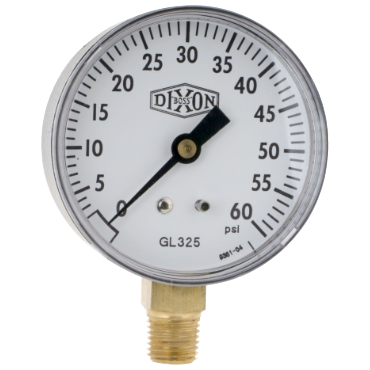

Dixon Valve & Coupling GL325 Dry Pressure Gauge 0-60 PSI

Product Description

Dixon Valve & Coupling GL325 is a dry pressure gauge designed for reliability in various applications. This gauge features a lower mount style and is suitable for hydraulic and pneumatic systems, as well as compressors and machine tools. The gauge has a non-corrosive movement which is ideal for rugged conditions.

• PowerFlex movement with polyester segment for shock resistance
• Lower mount design for easy installation
• Face diameter of two and a half inches

Product Highlights

The GL325 is engineered for precise pressure readings and long service life even under shock and vibration.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• MPN: GL325

Technical Specifications

• Gauge Function: Pressure Gauge
• Gauge Type: Dry
• Pressure Range [Min]: 0 PSI
• Pressure Range [Max]: 60 PSI
• Temperature Range [Min]: -40 °F
• Temperature Range [Max]: 150 °F
• NPT Male: 1/4 in
• Case Material: ABS Plastic
• Face Diameter: 2 1/2 in
• Weight: 0.23 LB
• Mounting Style: Lower Mount
• Gauge Pressure Range: 0 to 60 psi
