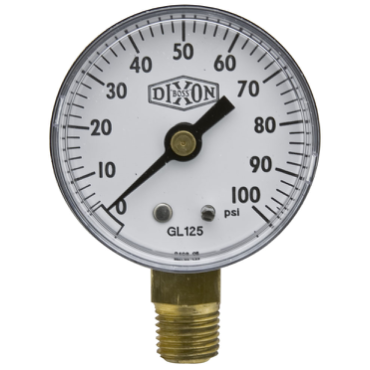

Dixon Valve & Coupling GL125 Dry Pressure Gauge 0 to 100 PSI

Product Description

The Dixon Valve & Coupling GL125 is a dry pressure gauge designed to provide accurate pressure readings in various applications. This gauge features a durable ABS plastic case for reliable performance under challenging conditions. It is suited for use in pumps, hydraulic systems, and compressors, where a non-corrosive movement is necessary.

• Gauge pressure range: 0 to 100 PSI
• Lower mount style for easy installation
• Temperature range from -40 °F to 150 °F

Product Highlights

This gauge is built for tough conditions and is ideal for industrial applications requiring accurate pressure monitoring.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• MPN: GL125

Technical Specifications

• Gauge Pressure Range: 0 to 100 PSI
• Gauge Type: Dry
• Temperature Range [Max]: 150 °F
• Face Diameter: 2 inches
• Mounting Style: Lower Mount
• Material: ABS Plastic
• Gauge Function: Pressure Gauge
• Case Material: ABS Plastic
• Pressure Range [Max]: 100 PSI
• NPT Male: 1/4 inches
• Temperature Range [Min]: -40 °F
• Pressure Range [Min]: 0 PSI
• Weight: 0.174 LB
