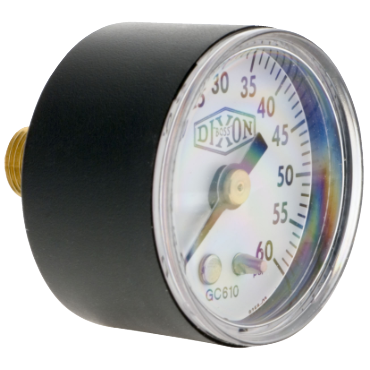

Dixon Valve & Coupling GC610 Dry Pressure Gauge 0-60 PSI

Product Description

The Dixon Valve & Coupling GC610 is a dry pressure gauge designed to measure pressure effectively in various applications. Its construction includes an ABS plastic case that protects the gauge under rugged conditions. It is ideal for pumps, hydraulic and pneumatic systems, compressors, and machine tools.

• Back mount design
• 1 1/2 inch face diameter
• 0 to 60 PSI pressure range

Product Highlights

This gauge features a PowerFlex movement with a polyester segment that withstands shock, vibration, and pulsation, ensuring reliable readings even in challenging environments.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 101895724

Technical Specifications

• Temperature Range (Max): 150 °F
• Material: ABS Plastic
• Pressure Range (Min): 0 PSI
• Mounting Style: Back Mount
• Gauge Function: Pressure Gauge
• Gauge Type: Dry
• Temperature Range (Min): -40 °F
• Gauge Pressure Range: 0 to 60 PSI
• NPT Male: 1/8 inch
• Case Material: ABS Plastic
• Face Diameter: 1 1/2 inch
• Pressure Range (Max): 60 PSI
• Weight: 0.11 LB
