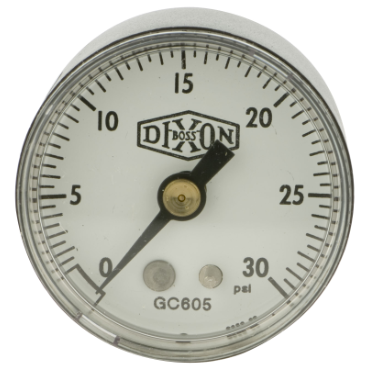

Dixon Valve & Coupling GC605 | Dry Pressure Gauge | 0 to 30 PSI

Product Description

The Dixon Valve & Coupling GC605 is a dry pressure gauge designed to provide accurate pressure measurements in various applications. With a gauge pressure range from 0 to 30 PSI, this product is suitable for use in pumps, hydraulic and pneumatic systems, and many other installations requiring reliable measurements.

• Back mount design for easy installation
• Face diameter of one and one-half inches
• Made with durable ABS plastic

Product Highlights

This gauge features PowerFlex movement which enhances its ability to resist shock, vibration, and pulsation.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• MPN: GC605

Technical Specifications

• Gauge Function: Pressure Gauge
• Gauge Pressure Range: 0 to 30 PSI
• Temperature Range [Max]: 150 °F
• Material: ABS Plastic
• Case Material: ABS Plastic
• NPT Male: 1/8 in
• Mounting Style: Back Mount
• Gauge Type: Dry
• Face Diameter: 1 1/2 in
• Pressure Range [Min]: 0 PSI
• Temperature Range [Min]: -40 °F
• Weight: 0.11 LB
