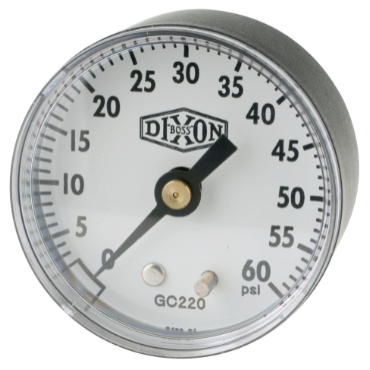

Dixon Valve & Coupling GC220 | Dry Pressure Gauge | 0-60 PSI

Product Description

Dixon Valve & Coupling offers the GC220 Dry Pressure Gauge for reliable performance in various applications. This gauge features a back mount style and is ideal for use on pumps and hydraulic systems.

• PowerFlex movement resists shock and vibration.
• Able to measure pressure from zero to sixty PSI.
• Constructed with durable ABS plastic material.

Product Highlights

This gauge is suitable for many installations where non-corrosive movements are needed.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 101895859

Technical Specifications

• Temperature Range (Max): 150 °F
• Mounting Style: Back Mount
• Gauge Pressure Range: 0 to 60 PSI
• Pressure Range (Max): 60 PSI
• Case Material: ABS Plastic
• Pressure Range (Min): 0 PSI
• NPT Male: 1/4 in
• Gauge Function: Pressure Gauge
• Temperature Range (Min): -40 °F
• Material: ABS Plastic
• Face Diameter: 2 in
• Gauge Type: Dry
• Weight: 0.195 LB
