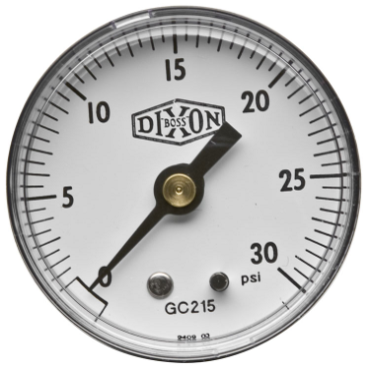

Dixon Valve & Coupling GC215 Dry Pressure Gauge

Product Description

The Dixon Valve & Coupling GC215 is a dry pressure gauge designed for reliable performance in various applications. This gauge features a back mount style and a two-inch face diameter, making it suitable for installation in tight spaces. It is constructed of ABS plastic which adds durability and resistance to corrosion. Commonly used in pumps, hydraulic and pneumatic systems, and machine tools, it provides accurate pressure readings in demanding environments.

• Back mount design for easy installation
• Temperature range from -40 to 150 degrees Fahrenheit
• Pressure range of 0 to 30 PSI

Product Highlights

Featuring a PowerFlex movement with a polyester segment, the GC215 is engineered to withstand shock, vibration, and pulsation.

Product Information

Standard Information

• Gauge Type: Dry
• Case Material: ABS Plastic

Technical Specifications

• Face Diameter: 2 inches
• NPT Male: 1/4 inch
• Pressure Range [Min]: 0 PSI
• Pressure Range [Max]: 30 PSI
• Temperature Range [Min]: -40 °F
• Temperature Range [Max]: 150 °F
• Weight: 0.19 LB
