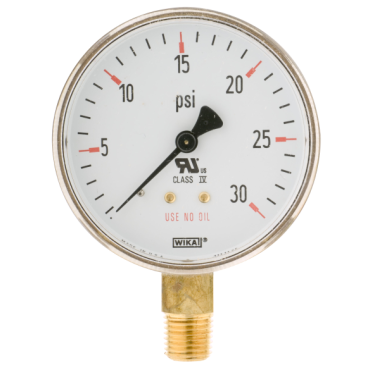

Dixon Valve & Coupling GBRW600 | Gauges - Welding

Product Description

The Dixon Valve & Coupling GBRW600 is a welding gauge designed for pressure measurement. This gauge features a brass construction that ensures durability and resistance to corrosion. It includes a lower mount design with a. quarter inch male NPT connection, making it easy to install in various applications.

• Pressure Range: 0-600 PSI
• Face Diameter: Two and a half inches
• Temperature Range: -40°F to 140°F

Product Highlights

This welding gauge is suitable for use in demanding environments where precise pressure measurements are essential.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 101919198

Technical Specifications

• Material: Brass
• Gauge Type: Welding
• Gauge Function: Pressure Gauge
• Gauge Pressure Range: 0 to 600 PSI
• Mounting Style: Lower Mount
• NPT Male: 1/4 inch
• Face Diameter: 2 1/2 inches
• Weight: 0.415 LB
• Temperature Range (Max): 140°F
• Temperature Range (Min): -40°F
