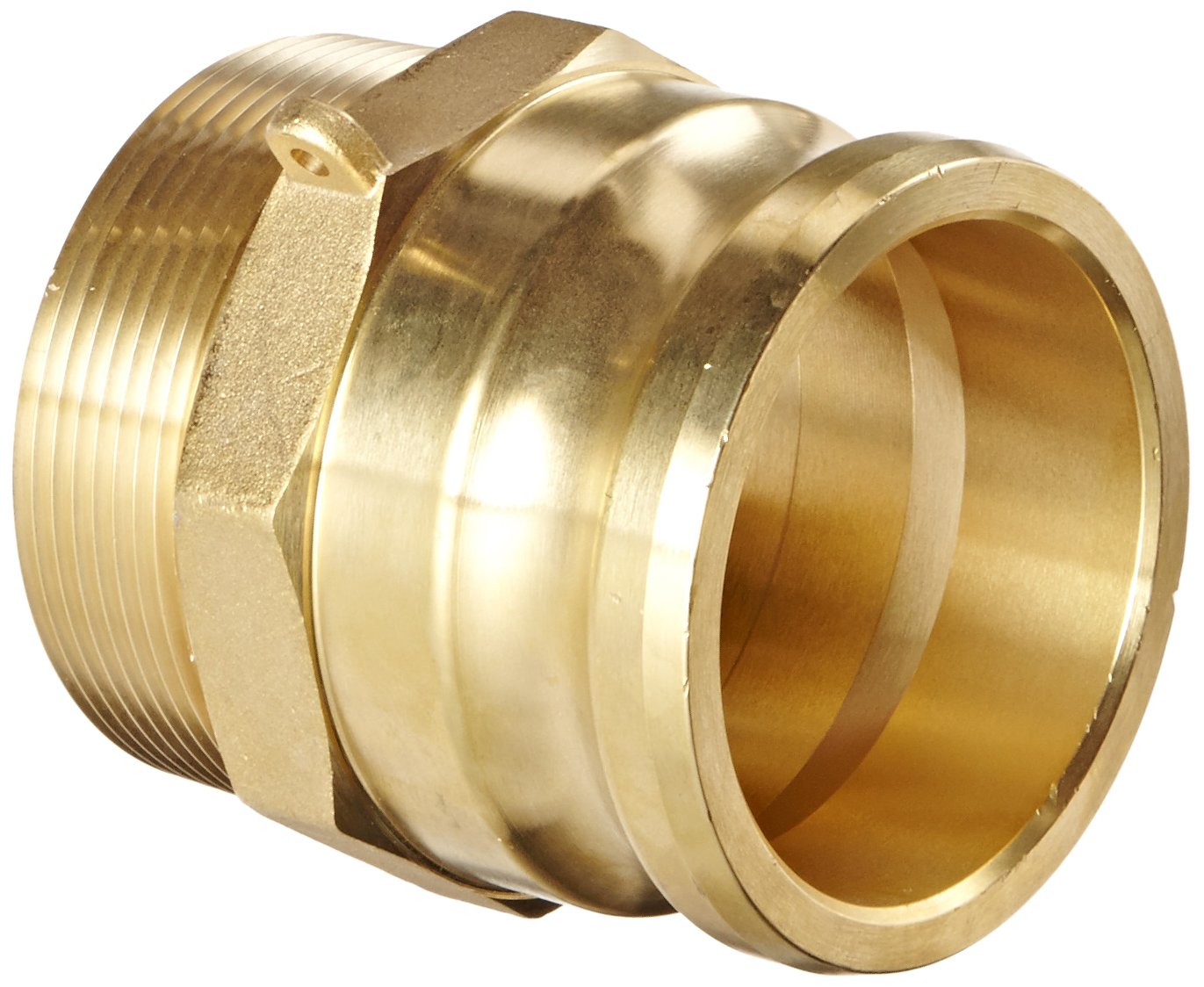

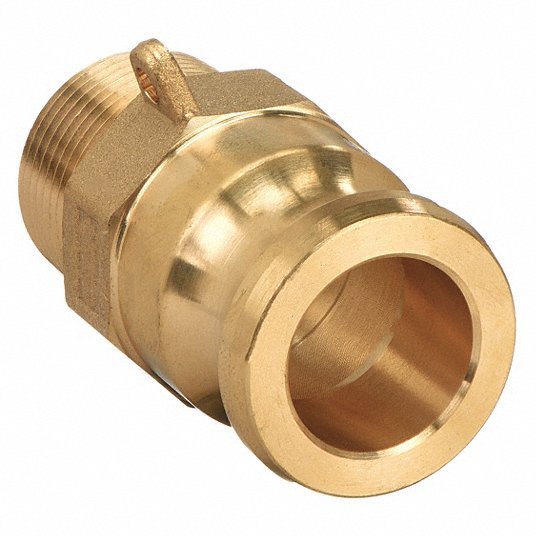

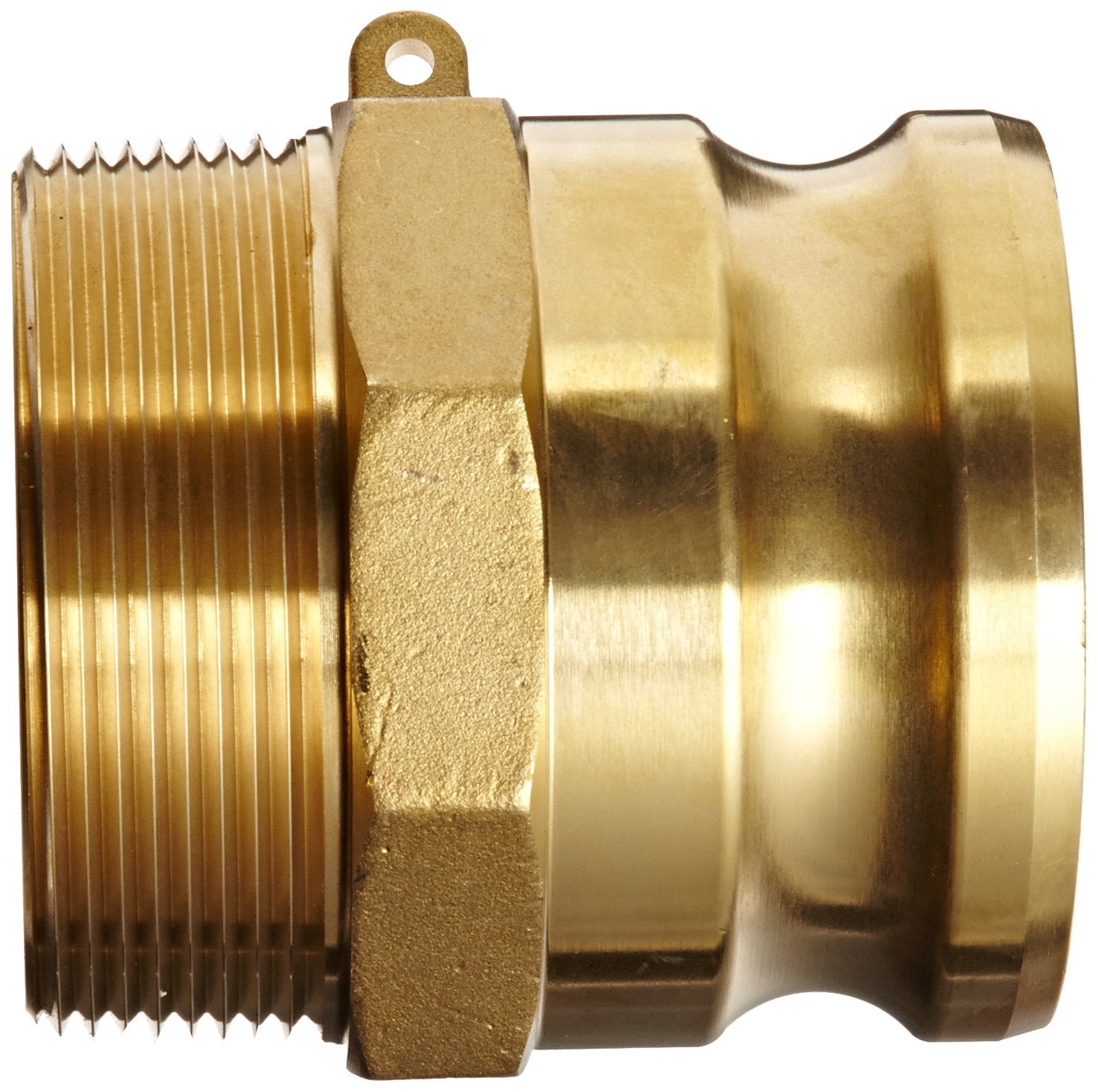

Dixon Valve & Coupling G300-F-BR Global Type F Cam and Groove Hose Fitting 3 inches Plug x 3 inches NPT Male

Product Description

The Dixon G300-F-BR ASTMC 38000 Forged Brass Global Type F Cam and Groove Hose Fitting has a straight body with two openings for connecting two hoses or pipes with cam and groove fittings or threads. It has one male groove adapter end for connecting to female cam couplers and one NPT female threaded end for connecting to an NPT male threaded connection (Type F).

• Straight body with two openings for connecting hoses or pipes
• Male groove adapter end for connecting to female cam couplers
• Made of brass for corrosion resistance and ductility at high temperatures

Product Highlights

This Dixon cam and groove fitting is suitable for use in commercial or industrial flow systems, such as water transport and treatment, waste management, and in petroleum systems.

Product Information

Standard Information

• Brand: DIXON VALVE & COUPLING
• Manufacturer Part Number: G300-F-BR
• Country of Origin: China

Technical Specifications

• Material: Brass
• Thread Size: 3 inch
• Thread Type: NPT
• Connector Type: Plug X Npt Male
• Exterior Finish: Brass
• Operating Pressure [Max]: 125 PSI
• Size Designation: 3 in
• Fitting Description: Type F Adapter
• Size: 3 in
• End Type: Male Pipe
• Type: Cam & Groove Coupling
• Connection Type: Male NPT x Male Adapter
• Fitting Type: Cam and Groove
• End 1: 3" Plug
• End 2: 3" NPT Male
• Body Style: Straight
• MPN: G300-F-BR
• Item [Specifications]: Cam and Groove Adapter
• Type [Specifications]: F
• Pipe Size [Specifications]: 3"
• Standards [Specifications]: A-A-59326D
• Thread Size [Specifications]: 3 in -8
• Coupler Size [Specifications]: 3"
• Fitting Type [Specifications]: MNPT
• Body Material [Specifications]: Brass
• For Hose I.D. [Specifications]: 3"
• Max. Pressure [Specifications]: 125 psi
• Overall Length [Specifications]: 3-15/16"
• Connection Type [Specifications]: NPT
• Gasket Material [Specifications]: Buna-N
• Hose Fitting Size [Specifications]: 3"
• Plug Outside Dia. [Specifications]: 3-19/32"
• Coupling Component [Specifications]: Plug
• Hose Fitting Gender [Specifications]: Male
• Includes Locking Arm [Specifications]: No
• Pipe Size (Fittings) [Specifications]: 3"
• Fittings Sub-Category [Specifications]: Adapters
• Pipe Fitting Material [Specifications]: Forged Brass
• Specific Fitting Shape [Specifications]: Adapter
• Fitting Connection Type [Specifications]: Male Adapter x MNPT
• Basic Pipe Fitting Shape [Specifications]: Adapter
• Material of Construction [Specifications]: Brass
• Pipe Size - Pipe Fitting [Specifications]: 3"
• Basic Pipe Fitting Material [Specifications]: Metal
• Specific Pipe Fitting Shape [Specifications]: Adapter
• Max. Working Pressure @ 70 F [Specifications]: 125 psi
• Pipe Fitting Connection Type [Specifications]: Male Adapter x MNPT
• Standards: A-A-59326D
• UNSPSC: 40141719
• Designed to interchange with: all products produced to A-A-59326D
• Maximum Operating Pressure: 125 PSI
