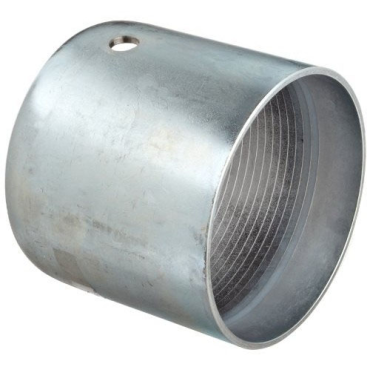

Dixon Valve & Coupling F64-1 Standard External Swage Ferrule

Product Description

Dixon Valve & Coupling F64-1 is a standard external swage ferrule designed for reliable performance across various applications. This ferrule is compatible with hoses reinforced with one or two wire braid, as well as fiber reinforced braided or spiraled types. The F64-1 is suitable for oil and suction discharge hoses, barge loading and unloading hoses, LP gas hoses, anhydrous ammonia hoses, acid chemical hoses, and high-pressure air and water hoses.

• External swage ferrule for 4 inches hose I.D.
• Compatible with hose O.D. from 4 5/8 inches to 4 11/16 inches.
• Made from plated carbon steel.

Product Highlights

This product features a coupling system that requires no bolts for installation, ensuring a clean setup without protrusions. The Holedall coupling design enhances efficiency and safety.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 103563632

Technical Specifications

• Type: External Swage Ferrule
• Material: Plated Carbon Steel
• Hose I.D.: 4 inches
• Hose O.D. Range: 4 5/8 inches to 4 11/16 inches
• Weight: 4.08 pounds
