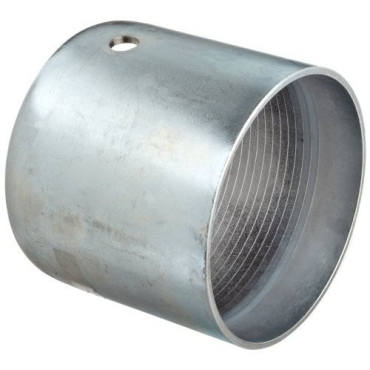

Dixon Valve & Coupling F48-2 | Standard External Swage Ferrule | Plated Carbon Steel | 3 in Hose I.D.

Product Description

The Dixon Valve & Coupling F48-2 is a standard external swage ferrule designed for various hose applications. This ferrule perfectly accommodates hoses with an inner diameter of three inches and is ideal for both one and two wire braid reinforced hoses. It is an important component in systems dealing with oils, suction discharge, and high-pressure air and water hoses.

• Compatible with multiple hose types
• Constructed from plated carbon steel
• No bolts required for secure coupling

Product Highlights

The F48-2 provides a bolt-free coupling, allowing for a clean and secure connection without protrusions, enhancing safety and operational efficiency.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 101879377

Technical Specifications

• Hose O.D. Range: 3 41/64 in to 3 3/4 in
• Type: External Swage Ferrule
• Material: Plated Carbon Steel
• Hose I.D.: 3 in
• Weight: 1.85 LB
