Dixon Valve Coupling DV-00304 Cam Groove Coupling Part D

Product Description

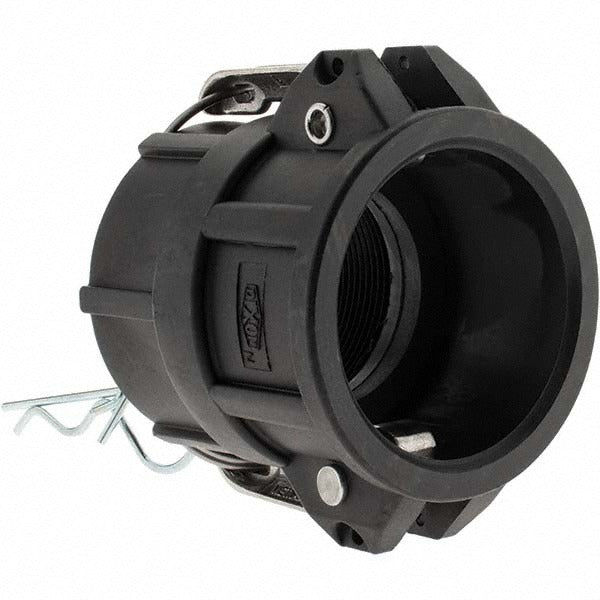

The DIXON VALVE COUPLING DV-00304 is a Part D cam and groove male coupler with female NPT (FNPT) threading, constructed from polypropylene. Cam and groove couplings provide fast, tool-free connections in fluid transfer applications by securing two mating halves with a simple lever-cam action. The polypropylene construction offers resistance to a range of chemicals and is well suited for moderate-duty liquid handling systems. This coupler is installed by licensed plumbers, industrial maintenance technicians, and fluid transfer specialists working on hose-and-pipe assembly systems where quick disconnect capability is required.

This coupling is designed for use in fluid transfer lines where a male coupler mates to a female adapter to form a secure, leak-resistant connection. Typical applications include agricultural irrigation, chemical transfer, water handling, and general industrial fluid conveyance. The FNPT thread allows direct connection to standard female pipe-threaded fittings. It is suited for both light industrial and commercial installations requiring polypropylene-compatible media.

Key Features

• Part D cam and groove style — male coupler with FNPT thread for direct pipe connection
• Polypropylene construction provides chemical resistance for compatible fluid transfer applications
• Tool-free cam-lever design allows rapid connection and disconnection without special equipment
• Sold individually, enabling single-unit replacement or system assembly

Compatibility

Designed as an OEM-style replacement or new-installation cam and groove male coupler for fluid transfer systems using standard FNPT-threaded pipe fittings and mating cam groove female adapters.

Installation Notes

Installation should be performed by a qualified plumber or fluid systems technician. Shut off all flow and depressurize the line before removing or installing any cam groove fitting. Verify that the mating female adapter and all media contacted by the fitting are compatible with polypropylene before placing into service. Inspect cam arms and gasket seating surfaces for damage after each connection cycle.
