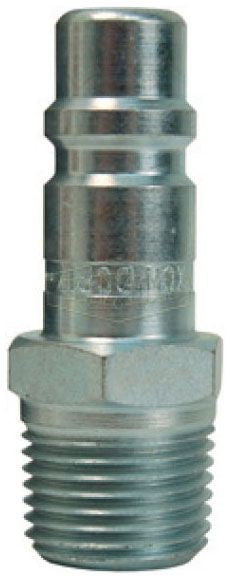

Dixon Valve & Coupling DCP21 1/4 MPT 1/4 Body 1-3/4 L 300 PSI 37 CFM

Product Description

The Dixon Valve & Coupling DCP21 is a quick connect plug fitting designed for industrial applications. This fitting has a nominal pipe size of one quarter inch, overall length of one and three-fourth inches, and features a male threaded end connection. It is made of steel and has a pressure rating of three hundred PSI, suitable for use in environments with temperatures ranging from negative forty to two hundred fifty degrees Fahrenheit.

• Quick disconnect design
• Compatible with many other makes
• Ideal for air service applications

Product Highlights

This plug fitting is perfect for quick connections in industrial settings.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• MPN: DCP21

Technical Specifications

• Nominal Pipe Size: 1/4 inch
• Overall Length: 1-3/4 inch
• End Connection: Male threaded
• Material: Steel
• Pressure Rating: 300 PSI
• Temperature Rating: -40 to 250 degrees Fahrenheit
• Application: Industrial, inside air
• Applicable Standard: MIL-C 4109F/A-A-59439
• Flow Rating: 37 CFM at 100 PSI
• Hex Diameter: 9/16 inch
