Dixon Valve & Coupling CT250L | Constant Torque Worm Gear Clamp

Product Description

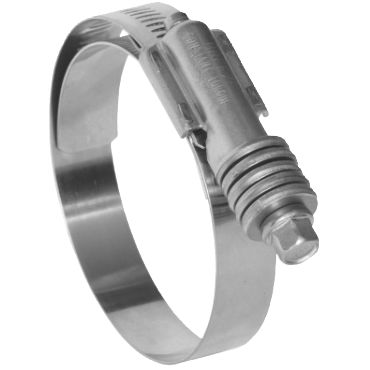

The Dixon Valve & Coupling CT250L is a constant torque worm gear clamp suitable for a hose outer diameter range from one and forty-eight sixty-fourths to two and forty sixty-fourths inches. This clamp is designed to automatically adjust its diameter based on changes in operational or environmental temperatures.

• Patented Belleville spring mechanism for automatic adjustment
• Constructed from 304 stainless steel for durability
• Hose O.D. range of one and forty-eight sixty-fourths to two and forty sixty-fourths inches

Product Highlights

This clamp features a robust design that offers secure and adjustable fitting.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 101731780

Technical Specifications

• Type: Constant Torque
• Band Width: 0.625 inches
• Band Material: 304 Stainless Steel
• Hose O.D. Range: 1 48/64 to 2 40/64 inches
• Bolt/Screw Size: 3/4 inches
• Bolt/Screw Material: Carbon Steel
• Weight: 0.21 LB
