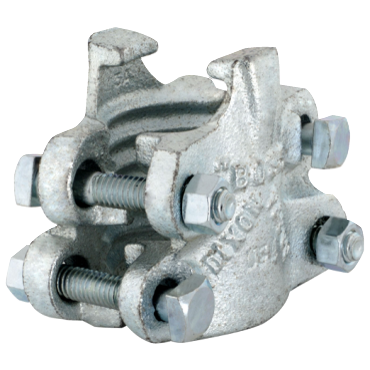

Dixon Valve & Coupling BU22 Boss Type Clamp

Product Description

The Dixon Valve & Coupling BU22 is a reliable boss type clamp designed for secure connections. It features a four-bolt design with two gripping fingers and two clamp sections for effective tightening. This clamp is suitable for hoses with an inner diameter of one and one-half inches and an outer diameter ranging from one and thirteen-sixteenths inches to two inches.

• 4-bolt type clamp
• Constructed from zinc plated iron
• Compatible with a range of hose sizes

Product Highlights

The BU22 clamp offers durability and strength for various applications.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part #: 101916904

Technical Specifications

• Hose I.D.: 1 1/2 in
• Hose O.D. Range: 1 13/16 to 2
• Clamp Torque: 40 lbf
• Material: Zinc Plated Iron
• Weight: 2.24 lb
