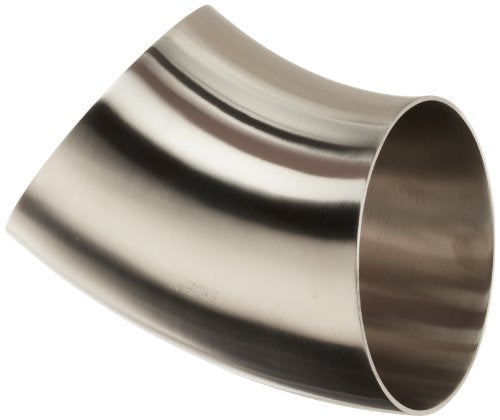

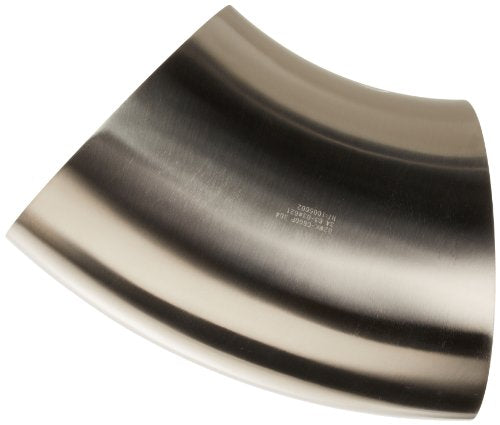

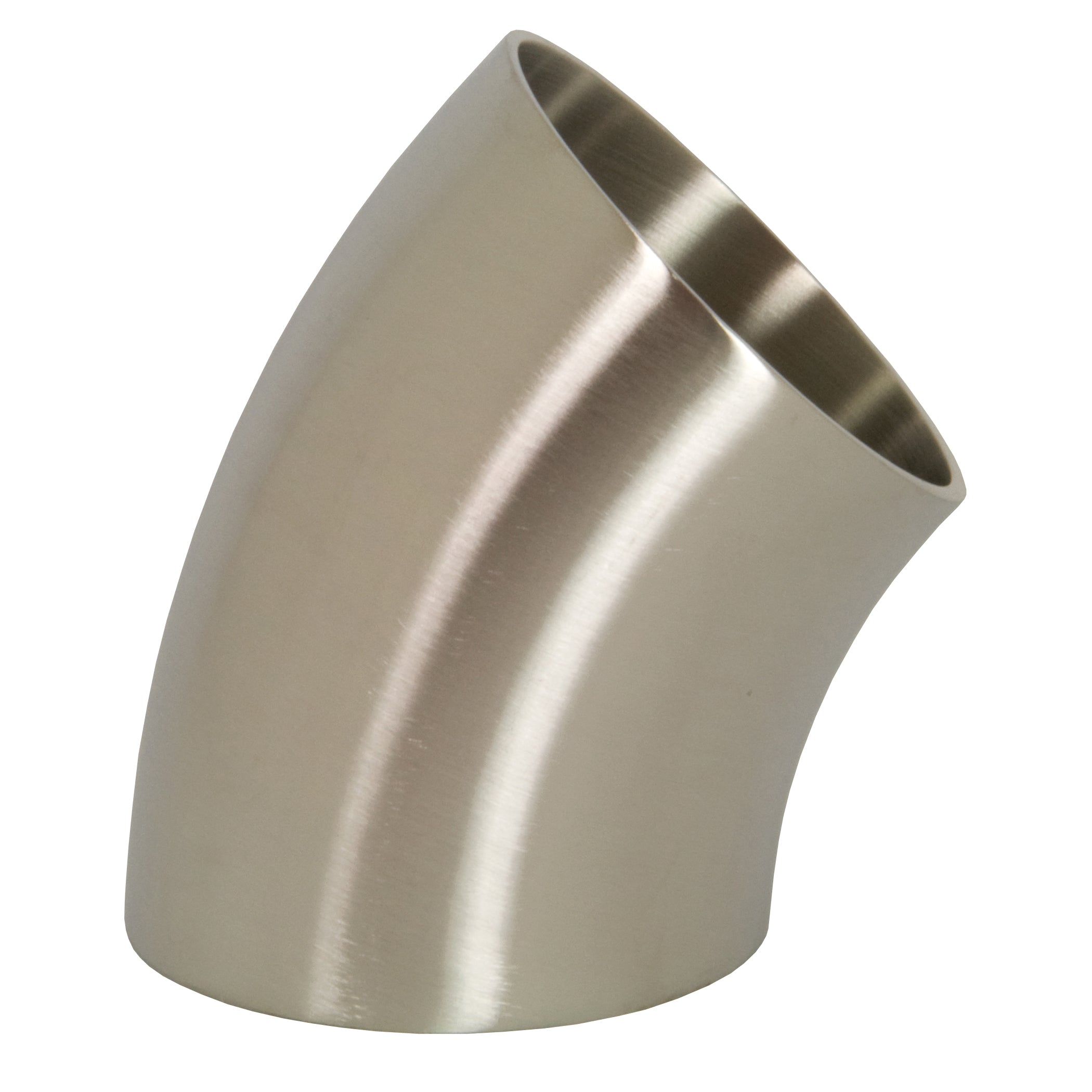

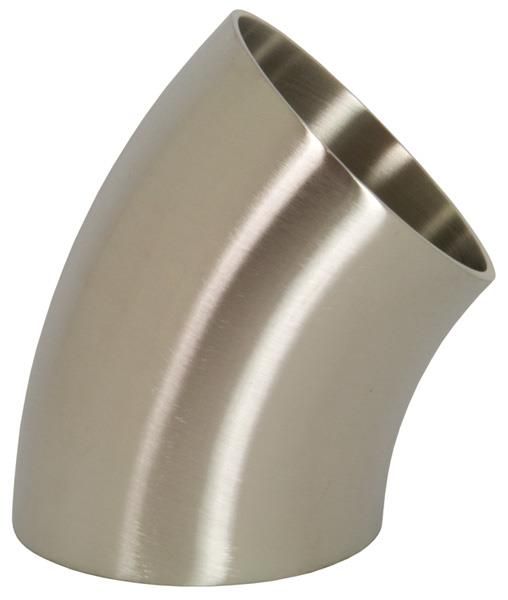

Dixon Valve & Coupling B2WK-G600P Stainless Steel 304 Sanitary Weld Short Elbow (45 Degree, 6 inches Tube OD)

Product Description

Dixon Valve & Coupling B2WK-G600P is a 45-degree polished weld short elbow fabricated from 304 stainless steel for sanitary tube systems. The fitting welds to tubing on both ends to change flow direction for 6.00 inch tube outside diameter lines and has a nominal wall thickness of 0.109 inches. It meets 3-A Sanitary Standards Number 63-03 (authorization 621) and is rated to 250 psi at 70°F for food, beverage, and dairy fluid transfer.

• 45-degree weld short elbow that welds to tubing on both ends for directional change; tube outside diameter 6.00 inches
• 304 stainless steel construction with polished finish and 3-A sanitary finish on ID and OD; nominal wall thickness 0.109 inches
• Maximum operating pressure 250 psi at 70°F; suitable for sanitary food, beverage, and dairy fluid transfer applications

Product Highlights

45° 304 stainless steel weld elbow for 6" tube OD; polished 3-A sanitary finish; 0.109" wall; 250 psi @ 70°F

Product Information

Standard Information

• Brand: DIXON VALVE & COUPLING
• Manufacturer Part Number: B2WK-G600P
• Country of Origin: Thailand

Technical Specifications

• Brand: Dixon Valve & Coupling
• Manufacturer Part Number: B2WK-G600P
• Series: B2WK
• Material: 304 stainless steel
• Finish: Polished; 3-A sanitary finish (ID and OD)
• Type: 45-degree weld short elbow
• Angle: 45 degree
• Tube Outside Diameter: 6.00 inches
• Ends Configuration: Weld ends (6 in)
• Wall Thickness: 0.109 inches
• Maximum Operating Pressure: 250 psi at 70°F
• Standards: 3-A Sanitary Standards Number 63-03 (authorization number 621)
• Nominal Size: 6 in
• Inner Diameter: 5.78 inches
• Outer Diameter: 6.00 inches
• Dimension A: 3.75 inches
• Radius (R): 9.00 inches
• Weight: 1837 g
• Country of Origin: Thailand
