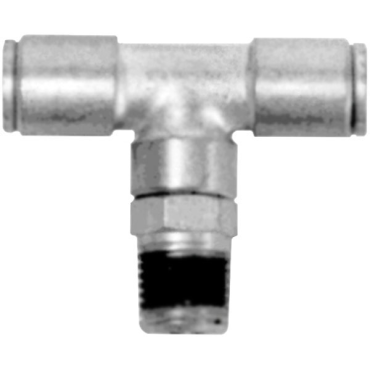

Dixon Valve & Coupling 72S8X8 Push-In Male Swivel Branch Tee

Product Description

The Dixon Valve & Coupling 72S8X8 is a Push-In Male Swivel Branch Tee designed for seamless connectivity in various applications. This fitting utilizes a positive seal to ensure there are no leaks after tubing insertion. It features a secure tube retention system that tightens the connection when pulled, enhancing its reliability.

• Constructed from durable brass
• Accommodates 1/4 inch tube O.D.
• Suitable for temperatures ranging from -10 °F to 200 °F

Product Highlights

This Push-In Male Swivel Branch Tee is ideal for fluid transfer applications and is designed to improve flow rates by up to sixty percent compared to conventional fittings. It comes pre-applied with PTFE pipe sealant on all male threads, which simplifies installation and reduces the need for extra labor.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 101896096

Technical Specifications

• End Types: Tubing & NPT
• Male Thread: 1/4 in (NPTF)
• Connection Type: Tube to Male NPTF
• Temperature Range [Min]: -10 °F
• Material: Brass
• Fitting Angle: 90°
• Fitting Description: Male Swivel Branch Tee
• Tube O.D.: 1/4 in
• Temperature Range [Max]: 200 °F
• No. of Ends: 3
• Weight: 0.103 LB
