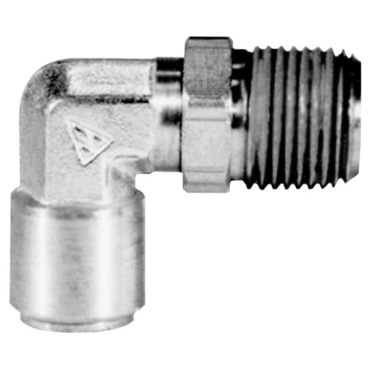

Dixon Valve & Coupling 69S8X8 Push-In Male Swivel Elbow

Product Description

The Dixon Valve & Coupling 69S8X8 is a push-in male swivel elbow designed for efficient fluid transfer. This fitting connects tubing and NPT threads effectively, offering a reliable solution for various plumbing tasks.

• Positive seal prevents leaks after tubing is inserted
• Secure tube retention enhances connection strength
• Full flow design increases flow rate by up to 60% compared to standard fittings

Product Highlights

This elbow fitting is essential for any plumbing project that requires a reliable connection.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• MPN: 69S8X8

Technical Specifications

• Fitting Angle: 90 degrees
• Temperature Range [Max]: 200 degrees Fahrenheit
• Style: Push-In Male Swivel Elbow
• Thread Type: NPTF
• Fitting Type: Male Swivel Elbow
• Tube O.D.: 1/4 inches
• End Types: Tubing & NPT
• Temperature Range [Min]: -10 degrees Fahrenheit
• No. of Ends: 2
• Material: Forged Brass
• Connection Type: Tube to Male NPTF
• Male Thread: 1/4 inches (NPTF)
• Fitting Description: Male Swivel Elbow
• Weight: 0.06 pounds
