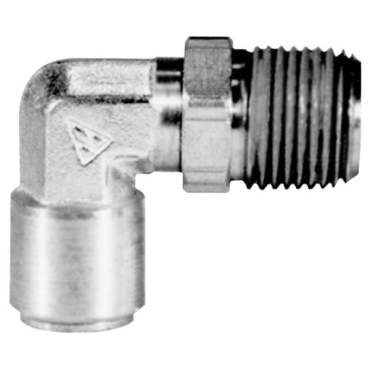

Dixon Valve & Coupling 69S12X8 Push-In Male Swivel Elbow

Product Description

The Dixon Valve & Coupling 69S12X8 is a push-in male swivel elbow designed for efficient fluid transfer. This fitting connects tubing to a male NPTF (National Pipe Taper Fuel) thread, allowing for secure connections in plumbing and HVAC applications.

• Forged brass construction for durability.
• 90-degree fitting for space-saving setups.
• Compatible with 3/8 inch tube O.D.

Product Highlights

The design provides a positive seal and minimizes leaks after installation. It features a full flow design that improves flow rates up to sixty percent more than conventional fittings, helping increase overall system efficiency.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 69S12X8

Technical Specifications

• Material: Forged Brass
• Fitting Angle: 90 degrees
• Fitting Type: Male Swivel Elbow
• Connection Type: Tube to Male NPTF
• Tube O.D.: 3/8 inches
• Male Thread: 1/4 inch NPTF
• Temperature Range: -10 to 200 degrees Fahrenheit
• Weight: 0.095 pounds
