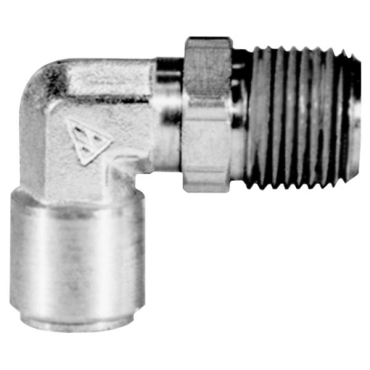

Dixon Valve & Coupling 69S12X12 Push-In Male Swivel Elbow

Product Description

The Dixon Valve & Coupling 69S12X12 is a push-in male swivel elbow fitting. It connects a tube with an outer diameter of three eighths of an inch to a male National Pipe Thread Female (NPTF). This fitting features a 90-degree angle, providing flexibility in various applications.

• Positive seal with no leaks upon tubing insertion
• Full flow design offers significant flow improvement
• Pre-applied PTFE sealant enhances reliability

Product Highlights

This push-in male swivel elbow is made of forged brass, ensuring durability and resistance to corrosion. It can sustain temperatures from negative ten degrees Fahrenheit to two hundred degrees Fahrenheit.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part #: 102221168

Technical Specifications

• Male Thread: 3/8 in (NPTF)
• Fitting Type: Male Swivel Elbow
• Fitting Angle: 90 degrees
• Material: Forged Brass
• Style: Push-In Male Swivel Elbow
• Tube O.D.: 3/8 in
• No. of Ends: 2
• Connection Type: Tube to Male NPTF
• End Types: Tubing & NPT
• Temperature Range [Min]: -10 degrees Fahrenheit
• Temperature Range [Max]: 200 degrees Fahrenheit
• Weight: 0.107 LB
