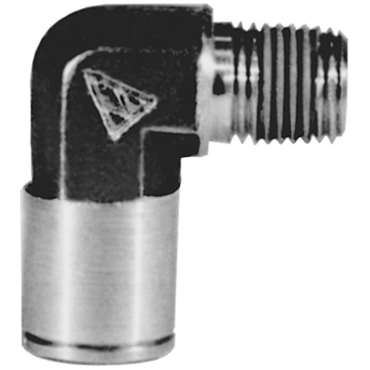

Dixon Valve & Coupling 698X4 Push-In Male Elbow

Product Description

The Dixon Valve & Coupling 698X4 is a push-in male elbow fitting. It is made from forged brass and designed for secure connections in fluid systems. This fitting features a positive seal to prevent leaks once the tubing is inserted. The design allows for full flow, which can provide up to sixty percent more flow compared to standard fittings. The product includes pre-applied PTFE based sealant on all male threads, reducing the need for additional sealing labor.

• Forged brass construction
• 90-degree fitting
• Ideal for tubing and NPT connections

Product Highlights

The push-in male elbow facilitates quick and easy connections while maintaining a secure seal.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• MPN: 698X4

Technical Specifications

• Fitting Description: Male Elbow
• Thread Type: NPTF
• Material: Forged Brass
• Temperature Range [Min]: -10 °F
• Tube O.D.: 1/4 in
• No. of Ends: 2
• End Types: Tubing & NPT
• Fitting Angle: 90°
• Connection Type: Tube to Male NPTF
• Temperature Range [Max]: 200 °F
• Style: Push-In Male Elbow
• Male Thread: 1/8 in (NPTF)
• Fitting Type: Male Elbow
• Weight: 0.043 LB
