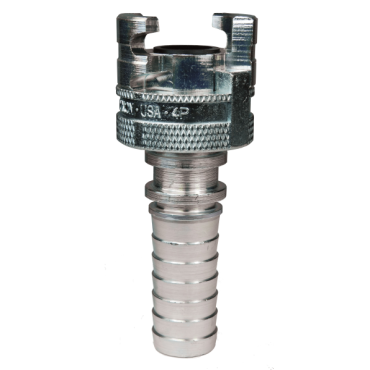

Dixon Valve & Coupling 4PS6 Dual Lock Quick-Acting Coupling

Product Description

The Dixon Valve & Coupling 4PS6 is a Dual Lock Quick-Acting Coupling designed for efficient air fitting applications. This coupling features a spring-loaded interlocking mechanism that enhances connection security. The full opening design ensures that full-line pressure is directed to the tool effectively, making it suitable for a wide range of pneumatic uses.

• 3/4 inch Hose Shank Size
• Steel construction with trivalent chrome plating
• Interchanges with National A type and Perfecting P type couplings

Product Highlights

This coupling is ideal for use in air tools and systems requiring quick and secure connections, ensuring reliable performance under pressure.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part: 106341328

Technical Specifications

• Series: DQC P-Series
• Male Barb/Hose Size: 3/4 inch
• Material: Steel
• Body Size: 1/2 inch
• Pressure Rating: 300 psi
• Max Operating Pressure: 300 PSI, 20 bar
• Connection Type: Hose End Barb with Locking Sleeve
• Body Material: Trivalent Chrome Plated Steel
• Weight: 0.54 LB
