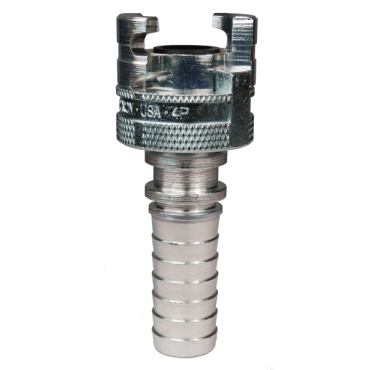

Dixon Valve & Coupling 4PS3 Dual Lock Quick-Acting Coupling

Product Description

The Dixon Valve & Coupling 4PS3 is a dual lock quick-acting coupling designed for efficient air fittings. This coupling features a spring-loaded interlocking engagement that ensures a secure connection. It operates at a pressure rating of 300 psi, providing reliability in various applications.

• Spring-loaded interlocking mechanism
• Full opening allows complete pressure flow
• Interchangeable with multiple coupling types

Product Highlights

This coupling is designed for applications requiring secure and quick connections, suitable for use in pneumatic systems.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 104171624

Technical Specifications

• Pressure Rating: 300 psi
• Material: Steel
• Series: DQC P-Series
• Male Barb/Hose: 3/8 in
• Operating Pressure [Max]: 300 PSI, 20 bar
• Body Material: Trivalent Chrome Plated Steel
• Connection Type: Hose End Barb with Locking Sleeve
• Body Size: 1/2 in
• Weight: 0.47 LB
