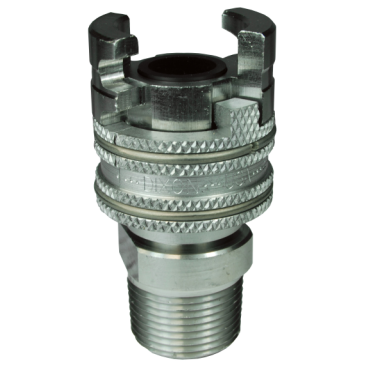

Dixon Valve & Coupling 4PM3 Dual Lock Quick-Acting Coupling

Product Description

The Dixon Valve & Coupling 4PM3 is a dual lock quick-acting coupling designed for air fittings. It features a male pipe thread with a locking sleeve for secure connections. This coupling allows for full-line pressure to reach the tool, making it suitable for various applications in HVAC and plumbing.

• Spring-loaded interlocking engagement
• Compatible with National A type and Perfecting P type couplings
• Max operating pressure of three hundred PSI

Product Highlights

The innovative design of the 4PM3 makes it ideal for use with air tools and in environments where high pressure is required.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• MPN: 4PM3

Technical Specifications

• Connection Type: Male Pipe Thread with Locking Sleeve
• Male Thread: 3/8 in NPT
• Body Material: Trivalent Chrome Plated Steel
• Series: DQC P-Series
• Operating Pressure [Max]: 300 PSI, 20 bar
• Component: Coupler
• Material: Steel
• Body Size: 1/2 in
• Pressure Rating: 300 psi
• Weight: 0.53 LB
