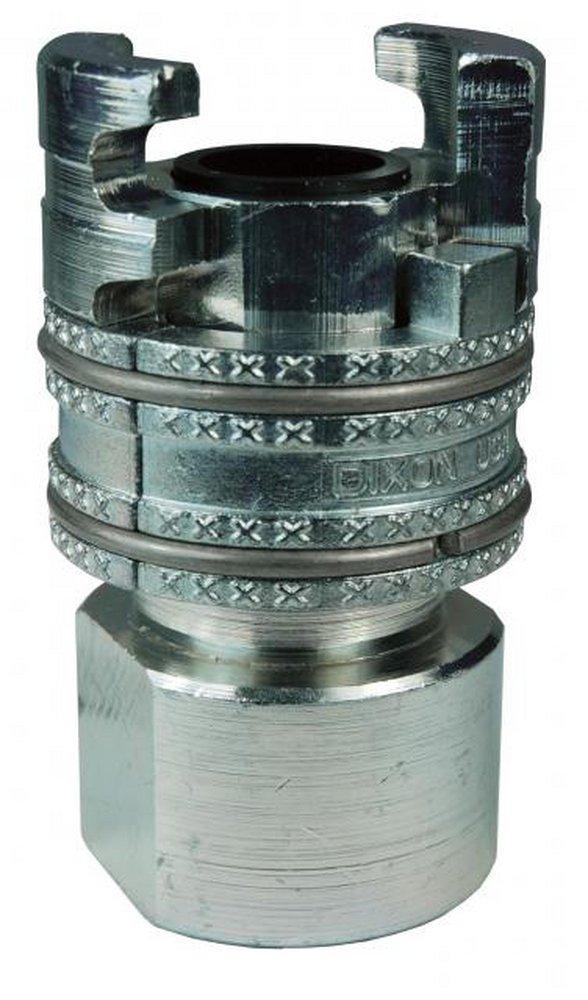

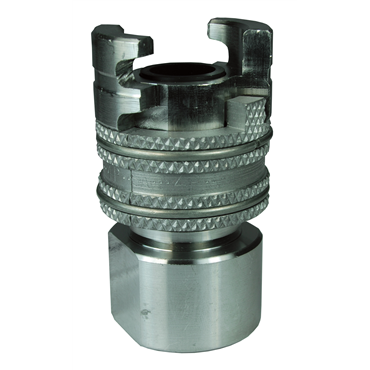

Dixon Valve & Coupling 4PF6 Dual Lock Quick-Acting Coupling

Product Description

The Dixon Valve & Coupling 4PF6 is a Dual Lock Quick-Acting Coupling designed for reliable connection and disconnection with minimal effort. This coupling is built with a spring-loaded interlocking engagement that allows for easy operation while maintaining strong connection integrity. The full opening design provides maximum flow and allows the tool to work under full-line pressure. An optional locking key is available to prevent sleeve retraction, ensuring the connection stays secure during use.

• Interchanges with National A type, Perfecting P type, and Thor PHC series couplings
• Made from trivalent chrome plated steel
• Rated for 300 PSI operating pressure

Product Highlights

This product is ideal for applications requiring frequent connection and disconnection under high pressure, such as in air fittings.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 104070667

Technical Specifications

• Body Material: Trivalent Chrome Plated Steel
• Operating Pressure [Max]: 300 PSI, 20 bar
• Connection Type: Female Pipe Thread with Locking Sleeve
• Component: Coupler
• Body Size: 1/2 in
• Material: Steel
• Female Thread: 3/4 in
• Series: DQC P-Series
• Pressure Rating: 300 psi
• Weight: 0.64 LB
