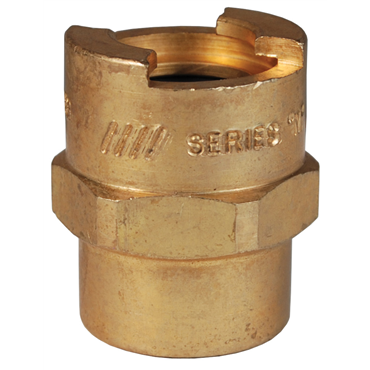

Dixon Valve & Coupling 4NF4-B 4NF4-B | Dix-Lock Quick-Acting Coupling

Product Description

Dixon Valve & Coupling offers the 4NF4-B Dix-Lock Quick-Acting Coupling. This product features a female head and a female NPT end made from brass. It is designed for efficient connection and disconnection in various air system applications.

• Connection Type: Female Head x Female NPT End
• Pressure Rating: 300 psi
• Compatible with 1/2 inch NPT

Product Highlights

This coupling is equipped with dual guide sleeve tabs for smooth operation during connection and disconnection. The 'Push-Twist and Click' feature ensures a secure lock when in use. Additional safety measures include a pneumatically energized seal that maintains an airtight condition through all working pressures, and an optional safety-lock ring to prevent accidental disconnection during operation.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part #: 113286136

Technical Specifications

• Series: DQC N-Series
• Material: Brass
• Weight: 0.35 LB
• Body Material: Brass
• Female Thread: 1/2 in NPT
• Pressure Rating: 300 psi
• Connection Type: Female Head x Female NPT End
