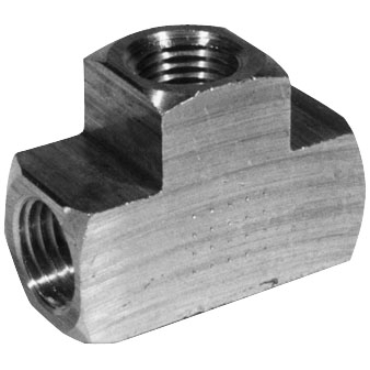

Dixon Valve & Coupling 322-0404 Brass Fitting 1/4 NPT(F) Replacement MPN

Product Description

The Dixon Valve & Coupling 322-0404 is a brass fitting designed for various applications. It features a 1/4 NPT female pipe thread that connects easily to other fittings. This product is ideal for use in pneumatic, instrumentation, water, oil, and low-pressure lubrication lines.

• Durable CA360 brass construction
• Suitable for NPT connections
• Works in a temperature range from negative sixty degrees Fahrenheit to two hundred degrees Fahrenheit

Product Highlights

The brass fitting is compatible with aluminum, copper, steel, and iron. It is recommended to use thread sealant or Teflon tape for a secure connection, ensuring reliability in various environments.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 101745953

Technical Specifications

• End Types: NPT
• End Size: 1/4 NPT(f)
• Material: CA360 Brass
• I.D.: 0.438 in
• Working Pressure [Max]: 300 psi
• Temperature Range [Max]: 200 °F
• Temperature Range [Min]: -60 °F
• Fitting Type: Female Tee
• Fitting Angle: 90°
• No. of Ends: 3
• Overall Length: 1.56 in
• Weight: 0.17 LB
