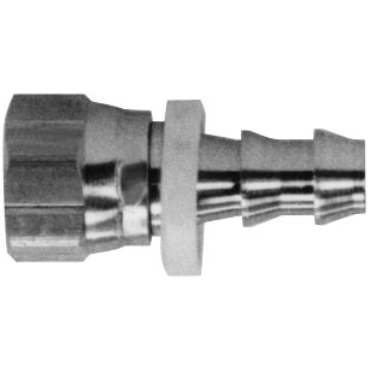

Dixon Valve & Coupling 2880609C Brass Push-On Hose Fitting 3/8 in

Product Description

The Dixon Valve & Coupling 2880609C is a brass push-on hose fitting designed for reliable connections in various plumbing applications. This fitting features a female swivel barb designed to interface with 3/8 inch hoses. It securely grips the hose once fully inserted, ensuring a tight seal.

• Compatible with Push-On (Push-Lok) hose
• Concealed cut end for a finished look
• Rated for pressures up to 350 PSI

Product Highlights

Use this fitting for tasks requiring a reliable connection in HVAC, plumbing, and irrigation systems.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 113340008

Technical Specifications

• End Type: Hose Barb x Female
• Hose Size: 3/8 in
• Pressure Rating: 350 PSI
• Shape: Straight
• Female Thread Size: 9/16-18
• Temperature Range [Min]: -40 °F
• Pressure @ Temp.: 350 psi @ 72 °F
• Fitting Description: Female SAE/JIC Swivel Push-On End
• Thread Size: 9/16
• Material: Brass
• Female Thread: UNF
• Tube O.D.: 3/8 in
• Hex Size: 11/16 in
• Component Material: Yellow Plastic Cap
• Pipe Thread: 45° SAE / 37° JIC
• Length: 1.75 in
• Thread Type: Female 37° JIC
• Weight: 0.065 LB
