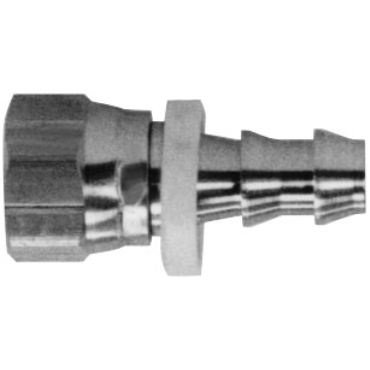

Dixon Valve & Coupling 2870407C Brass Push-On Hose Fitting

Product Description

The Dixon Valve & Coupling 2870407C is a brass push-on hose fitting designed for reliable connection in various applications. This fitting features a female swivel barb with a 37 JIC and 45 SAE thread, ensuring a secure and leak-free fit. Ideal for use in plumbing, HVAC, and industrial settings, it is specifically crafted for Push-On (Push-Lok) style hoses.

• Fully grips hose when pushed completely
• Conceals the cut end of the hose
• Made for Push-On style hose only

Product Highlights

This fitting is essential for creating strong connections in fluid transfer systems.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 113339999

Technical Specifications

• Length: 1.47 inches
• Material: Brass
• End Type: Hose Barb x Female
• Shape: Straight
• Pipe Thread: 45° SAE / 37° JIC
• Pressure Rating: 350 PSI
• Temperature Range [Min]: -40 °F
• Hex Size: 9/16 inches
• Hose Size: 1/4 inches
• Weight: 0.038 pounds
