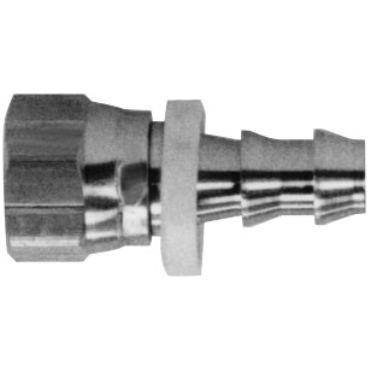

Dixon Valve & Coupling 287-1014 Female 45 SAE/37 JIC Swivel x Push-on Hose Barb

Product Description

The Dixon Valve & Coupling 287-1014 is a female 45 degree SAE/37 degree JIC swivel that connects to a push-on hose barb. This fitting is ideal for connecting hoses securely in various applications. It is made from brass to ensure durability and resistance to corrosion, making it suitable for both residential and commercial uses.

• Fitting Type: Push-On Fittings
• Material: Brass
• Female Thread Size: 7/8-14

Product Highlights

This fitting features a straight design, compatible with hoses measuring five-eighths of an inch in diameter. It is designed for easy installation without the need for additional clamps or special tools.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 101868112

Technical Specifications

• Hose I.D.: 5/8 in
• Fitting Type: Push-On Fittings
• No. of Ends: 2
• Material: Brass
• Fitting Angle: Straight
• Female Thread Size: 7/8-14
• Fitting Description: Push-On Fittings
• End Types: Hose Barb & UNF
• Weight: 0.15 LB
