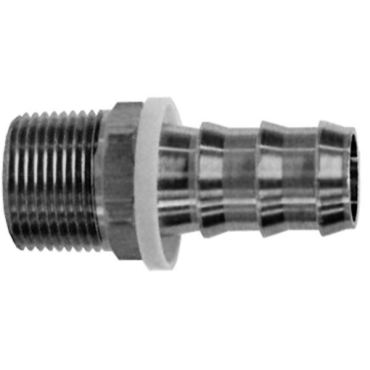

Dixon Valve & Coupling 2720804C Hose Fitting 1/2 Push-On X 1/4 NPTF Male Hose Barb

Product Description

The Dixon Valve & Coupling 2720804C is a hose fitting designed for push-on applications. This fitting allows for a secure connection with a half inch push-on size and a quarter inch NPTF male thread. Ideal for use with Push-On (Push-Lok) style hose.

• Piece designed to fully grip hose when fully inserted.
• Exposed end of the hose is concealed by a plastic cap.
• Best suited for Push-On (Push-Lok) style hoses.

Product Highlights

Secure fittings ensure reliable connections in various plumbing tasks.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• MPN: 2720804C

Technical Specifications

• Hose Size: 1/2 in
• Hex Size: 11/16 in
• Male Thread Size: 1/4-18
• Shape: Straight
• Thread Type: NPTF
• Length: 1.86 in
• End Type: Hose Barb x Male
• Material: Brass
• Pressure Rating: 350 PSI
• Fitting Description: Male NPTF Push-On End
• Male Thread: NPTF
• Component Material: Yellow Plastic Cap
• Temperature Range [Min]: -40 °F
• Thread Size: 1/4
• Pressure @ Temp.: 350 psi @ 72 °F
• Weight: 0.086 LB
