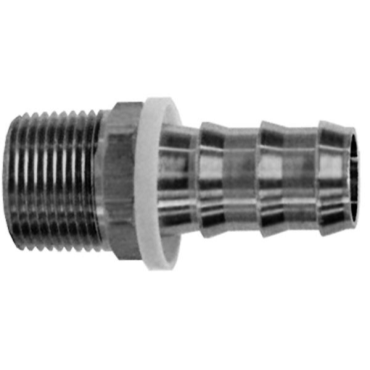

Dixon Valve & Coupling 2720402C Hose Fitting 1/4 in Hose ID 1/8 NPTF Thread

Product Description

Dixon Valve & Coupling 2720402C is a hose fitting designed for efficient connection in various applications. It features a male NPTF push-on end suitable for hose sizes of one-fourth inch and a thread size of one-eighth NPTF. This fitting is particularly effective with Push-On (Push-Lok) style hoses.

• Pushing the fitting fully grips the hose.
• Cut end of the hose is concealed by a plastic cap.
• Compatible with Push-On (Push-Lok) style hoses.

Product Highlights

Provides a secure connection and is easy to install.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part #: 112423414

Technical Specifications

• Temperature Range [Min]: -40 °F
• Male Thread Size: 1/8-27
• Hose Size: 1/4 in
• Pressure @ Temp.: 350 psi @ 72 °F
• Shape: Straight
• Material: Brass
• Thread Size: 1/8
• Length: 1.42 in
• Hex Size: 7/16 in
• Pressure Rating: 350 PSI
• Fitting Description: Male NPTF Push-On End
• Thread Type: NPTF
• Male Thread: NPTF
• End Type: Hose Barb x Male
• Component Material: Yellow Plastic Cap
• Weight: 0.01 LB
