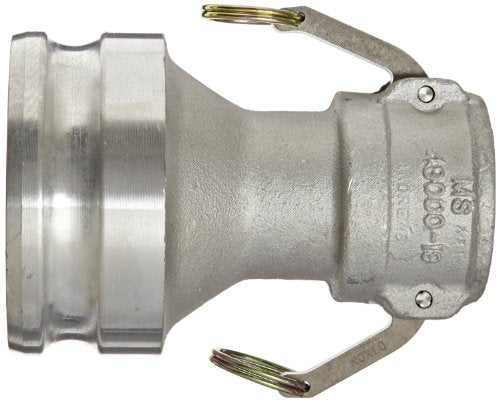

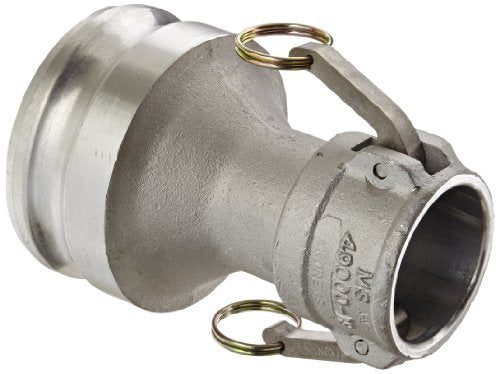

Dixon Valve & Coupling 2040-DA-AL Type DA Jump Size Coupling 2 in x 4 in

Product Description

The DIXON VALVE & COUPLING 2040-DA-AL Type DA Jump Size Coupling is designed for use with liquids. It features a coupler to adapter connection, aluminum construction, and a Buna-N seal. This coupling is suitable for applications requiring a secure and reliable connection between different sized hoses or fittings.

• Coupler x Adapter connection type
• Aluminum body material
• Maximum operating pressure of 100 psi at 70°F

Product Highlights

The Dixon Valve & Coupling 2040-DA-AL provides a reliable connection for liquid transfer applications. Its durable construction and secure locking mechanism ensure safe and efficient operation.

Product Information

Standard Information

• Brand: DIXON VALVE & COUPLING
• Manufacturer Part Number: 2040-DA-AL
• Country of Origin: United States

Technical Specifications

• Seal Material: Buna-N
• Connection Type: Coupler x Adapter
• Material: Aluminum
• Fitting Description: Coupler to Adapter
• Coupler x Adapter Size: 2 in x 4 in
• Temperature: 70 °F
• Operating Pressure [Max]: 100 psi
• Brand: Dixon Valve & Coupling
• MPN: 2040-DA-AL
• Model / MPN: 2040-DA-AL
• Coupler Size: 2" x 4"
• Item: Cam and Groove Adapter
• Type: DA
• Standards: A-A-59326B
• Plug Length: 2-1/16"
• Fitting Type: Female Coupler x Male Adapter
• Body Material: Aluminum
• Max. Pressure: 100 psi
• Overall Length: 6-3/4"
• Gasket Material: Nitrile
• Plug Outside Dia.: 4-45/64"
• Coupling Component: Socket x Plug
• Includes Locking Arm: Yes
• Socket"side Diameter: 2"
• Fittings Sub-Category: Coupler/Adapter Combinations
• Pipe Fitting Material: Aluminum
• Socket Inside Diameter: 2 in
• Fitting Connection Type: Female Coupler x Male Adapter
• Material of Construction: Aluminum
• Basic Pipe Fitting Material: Metal
• Max. Working Pressure @ 70 F: 100 psi
• Maximum Operating Pressure: 100 PSI
• Seal: Nitrile Rubber
• Adapter Size: 4 in, 100 mm
• End Type: Coupler x Adapter
• Domestic/Import: Domestic
• End Style: Coupler x Adapter
• Fitting/Connector Type: Reducing Coupling
• Length: 6-3/4 In
• Nominal Size: 4 x 2 in
• Pressure Rating: 100 psi
• Shape (Orientation): Straight
• Cam Type: Other
• Ends Configuration: 2in Female Cam & Groove, 4in Male Cam & Groove
• Material(s): Aluminum
• Seal Material(s): Buna-N/Nitrile Rubber
