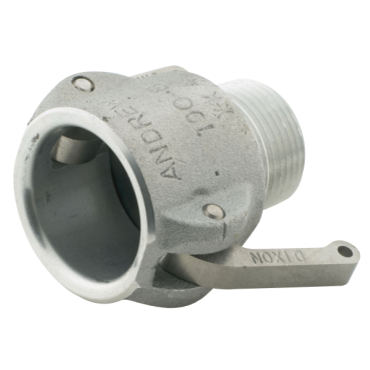

Dixon Valve & Coupling 200-B-AL Type B Coupling - Female Coupling x Male NPT

Product Description

The Dixon Valve & Coupling 200-B-AL is a Type B coupling designed for reliable connections. This female coupling connects directly to a male NPT thread. It is made from 356T6 aluminum, capable of handling a maximum operating pressure of 250 PSI.

• Compatible with liquids, verified by Dixon recommendations
• Precision machined for tight tolerances
• Features stainless pins that resist rust and binding

Product Highlights

This coupling offers durability and strength in various applications. Its design includes features that promote safe operation and easy maintenance.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 200-B-AL

Technical Specifications

• Size Designation: 2 inches
• Material: 356T6 Aluminum
• Male Thread: 2 inches
• Coupling Type: Type B Coupler
• Operating Pressure [Max]: 250 PSI
• End Type: Male Pipe
• Fitting Description: Straight
• Connection Type: Female Coupler x Male NPT
• Seal Material: Buna-N
• Weight: 0.825 LB
