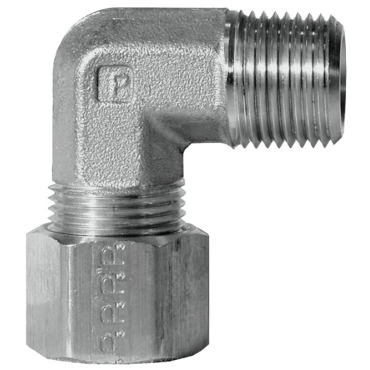

Dixon Valve & Coupling 169C-0604 Compression 90 Male Elbow

Product Description

The Dixon Valve & Coupling 169C-0604 is a compression 90 degree male elbow fitting. This fitting is excellent for connecting copper, aluminum, and thermoplastic tubing. It is suitable for low and medium pressure applications without excessive vibration or tube movement.

• Compatible with copper, aluminum, and thermoplastic tubing
• Designed for low to medium pressure tubing connections
• 90 degree angle for space-efficient installations

Product Highlights

This fitting connects tubing securely and efficiently in various plumbing scenarios.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• MPN: 169C-0604

Technical Specifications

• Tube Size: 3/8 inches
• End Types: Compression & Pipe
• Fitting Type: Elbow, 90 degrees
• Temperature Range [Max]: 250 degrees Fahrenheit
• Temperature Range [Min]: -65 degrees Fahrenheit
• Material: Brass
• Length: 1.030 inches
• Fitting Angle: 90 degrees
• Pipe Thread: 1/4 inches
• Fitting Description: Male Elbow
• Thread Type: Straight
• SAE Reference No.: 060202BA
• No. of Ends: 2
• End Size: 3/8 Tube, 1/4 Pipe (male)
• Thread Size: 1/4 inches, 9/16-24
• Weight: 0.071 pounds
