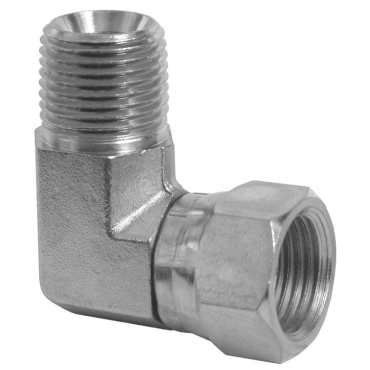

Dixon Valve & Coupling 1501-8-12 | 90 Male NPTF x Female NPSM Swivel Nut Elbow

Product Description

The Dixon Valve & Coupling 1501-8-12 is a 90-degree male NPTF to female NPSM swivel nut elbow. It is designed to facilitate connections in tight spaces. This product helps prevent hose stress during assembly, ensuring a stable connection.

• 90-degree swivel design for flexible installations
• Constructed from zinc plated steel for durability
• Compatible with NPTF and NPSM threads

Product Highlights

This fitting features a compact design that makes assembly easier in confined areas. The female NPSM swivel ensures a secure seal on a 30-degree seat.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• MPN: 1501-8-12

Technical Specifications

• End Types: NPTF & NPSM
• Fitting Angle: 90 degrees, Swivel
• Adapter Type: NPTF x NPSM
• No. of Ends: 2
• Material: Zinc Plated Steel
• Male Thread Size: 1/2-14
• Fitting Type: Pipe Swivel Adapter
• Female Thread Size: 3/4-14
• Finish: Zinc Plated
• Working Pressure: 3000 PSI
• End Type: Female x Male
• Male Thread: NPTF
• Female Thread: NPSM
• Weight: 0.15 LB
