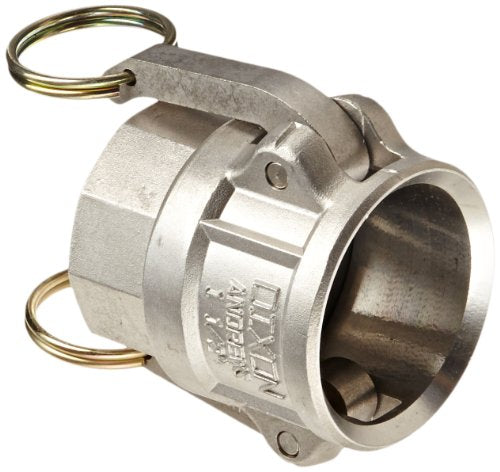

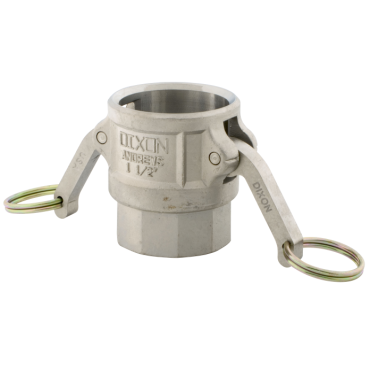

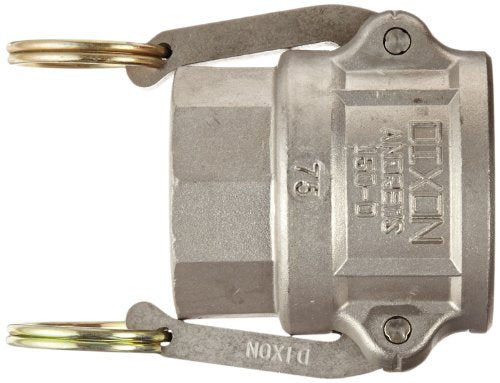

Dixon Valve & Coupling 150-D-SS Type D Coupler 250 PSI 1 1/2 Inch

Product Description

The DIXON VALVE & COUPLING 150-D-SS is a Type D Coupler featuring a Female Coupler x Female NPT connection, designed for robust fluid transfer applications. Constructed from 316 Stainless Steel with a Buna-N Seal, this 1 1/2 inch fitting is engineered for durability and reliable performance. It supports a maximum operating pressure of 250 PSI, making it suitable for various industrial liquid handling systems.

• Precision machined to rigid tolerances.
• Stainless pins will not rust or bind providing great strength and safety.
• Recess holds gasket firmly in place ensures proper placement.

Product Highlights

Durable 316 Stainless Steel construction with Buna-N seal, precision machined for secure liquid transfer up to 250 PSI.

Product Information

Standard Information

• Brand: DIXON VALVE & COUPLING
• Manufacturer Part Number: 150-D-SS

Technical Specifications

• Coupler Type: Type D
• End Type: Female Pipe
• Material: 316 Stainless Steel
• Female Thread Size: 1 1/2 in
• Seal Material: Buna-N
• Connection Type: Female Coupler x Female NPT
• Size: 1 1/2 in
• Fitting Shape: Straight
• Maximum Operating Pressure: 250 PSI
• Fitting Type: CamLock to NPT Straight Tubing
• Standard Compliance: Commercial Item Description A-A-59326D
• Coupling Gender: Female
• Hex Size: 2-3/16 in
• End 1 Type: Female Coupler
• End 1 Size: 1 1/2 in
• End 2 Type: Female NPT
• End 2 Size: 1 1/2 in
• Fitting Connection Family: CamLock to NPT
• Fitting Connection Details: 1-1/2 in Female NPT, 1-1/2 in - 11-1/2
• Ends Configuration: 1 1/2 in Female Cam & Groove, 1 1/2 in Female NPT
