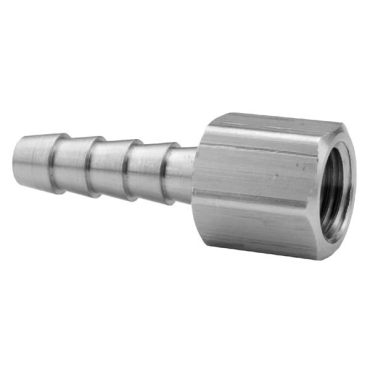

Dixon Valve & Coupling 1430407K Brass Barbed Hose Fitting

Product Description

The Dixon Valve & Coupling 1430407K is a brass barbed hose fitting. This fitting connects pipe threads to rubber or plastic hoses securely.

• Female 45° SAE/37° JIC thread type
• Hose diameter is one-fourth of an inch
• Pressure handling up to 250 psi at seventy-two degrees Fahrenheit

Product Highlights

This fitting is ideal for medium-pressure applications. It requires clamping or crimping for secure hose attachment.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 1430407K

Technical Specifications

• Thread Type: Female 45° SAE/37° JIC
• Hose Size: 1/4 in
• Thread Size: 7/16
• Material: Brass
• Operating Temperature Min: -40 °F
• Operating Temperature Max: 160 °F
• Body Material: Brass
• Female Thread: UNF
• Pressure @ Temp.: 250 psi @ 72 °F
• Shape: Straight
• Hex Size: 9/16 in
• Female Thread Size: 7/16-20
• Connection Type: Barb
• End Type: Hose Barb x Female
• Fitting Description: Female SAE/JIC Swivel Barbed End
• Tube O.D.: 1/4 in
• Pipe Thread: 45° SAE / 37° JIC
• Weight: 0.04 LB
